Laser Welders
Refrigeration Fiber Laser Welders
100% duty cycle 24/7
Refrigerant Direct Cooling Heat Pump Hand-Held Fiber Laser
The future of hand-held fiber laser welding — dual-circuit refrigerant cooling that eliminates the shortcomings of air-cooled and water-cooled welders.
- Larger penetration than air- or water-cooled systems
- More stable operation across a -20 °C to +60 °C range
- Faster welding speed with super high-speed wobble head
- Longer life cycle and uptime: 100% duty cycle, 24/7
- 60% less energy consumption than other cooling systems
- Lightest torch in the industry: under 600 g (1.6 lb)

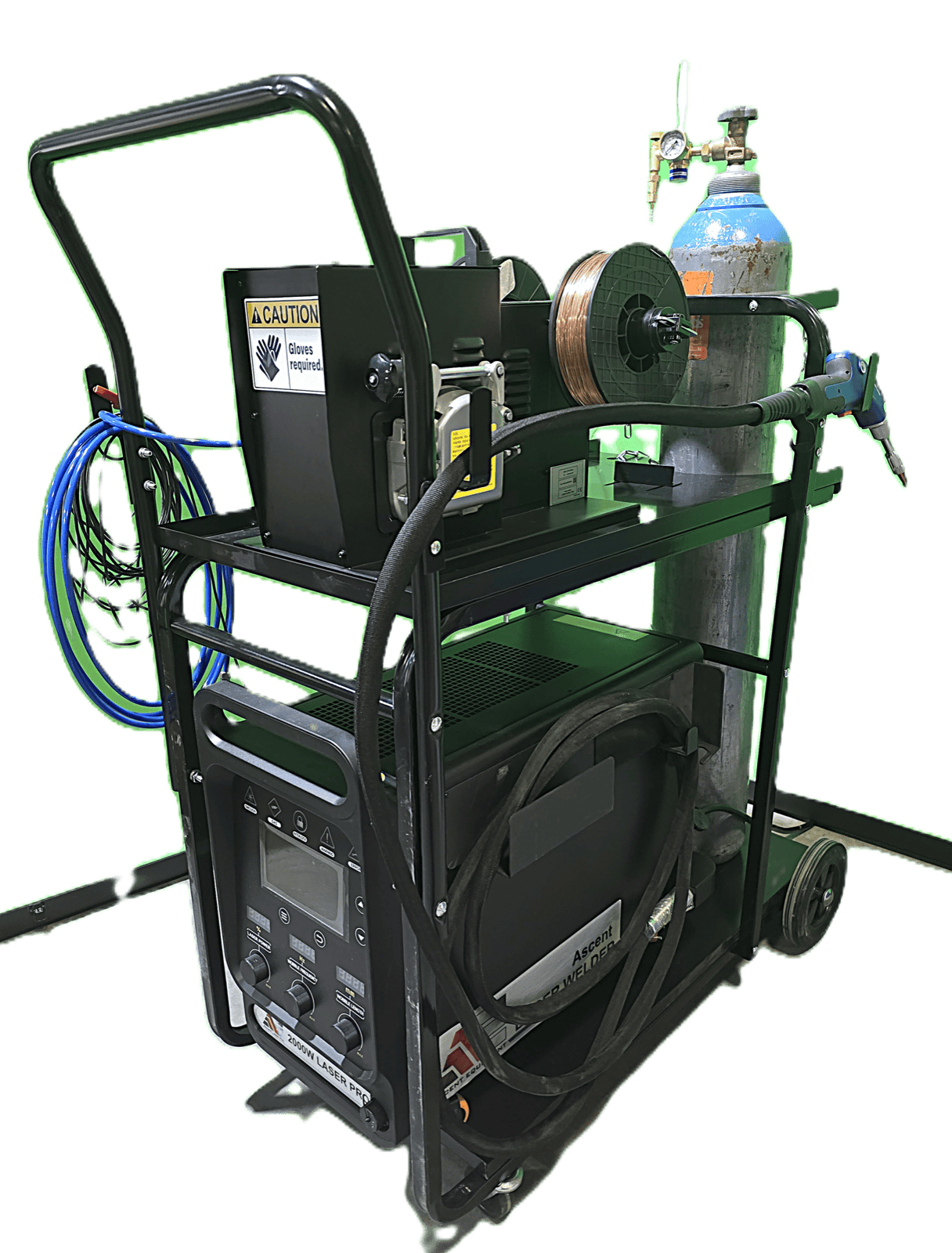

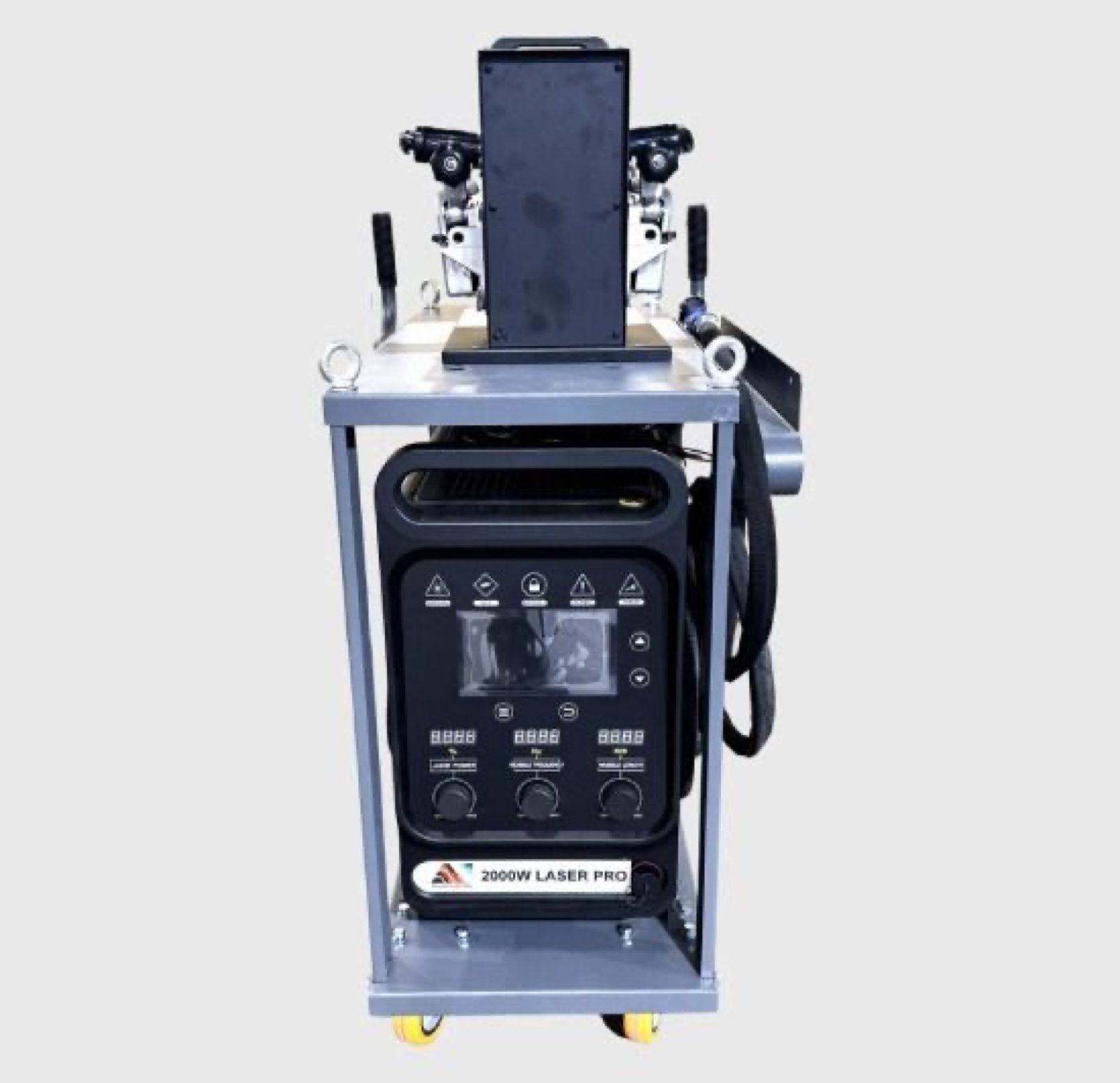

Handheld 2000W Fiber Laser Welder
- Fiber laser welders have replaced traditional methods such as TIG and MIG welding.
- Our refrigeration / heat pump technology, which can operate 24/7.
- Ideal for welding steel, aluminum, stainless steel, and other metals.
- This laser welding torch is the lightest available.
- It is user-friendly, requires minimal training, and can weld aluminum from 0.030" to 0.27".
See it in action

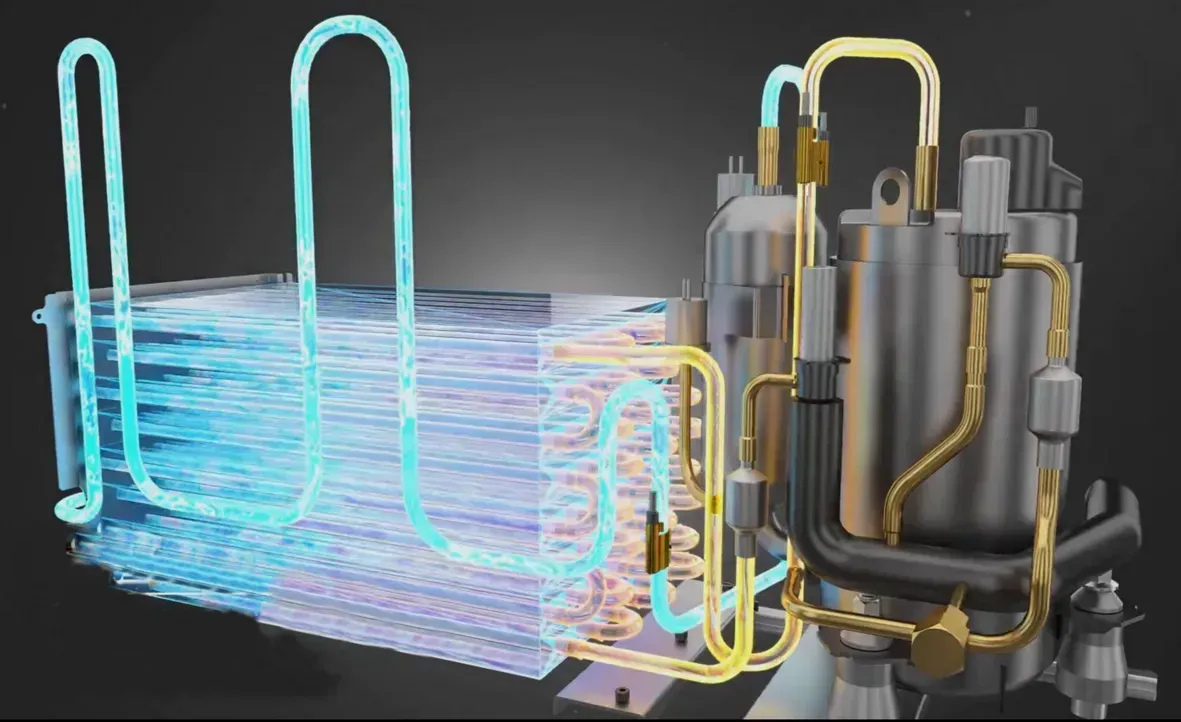

Dual circuit refrigerant direct cooling technology
Eliminates the shortcomings of air-cooled and water-cooled welders.
Adaptive repair process package ensures life-cycle reliability — self-checks the machine status and auto-calibration.
- Refrigeration highly efficient heat pump with inverter drive: no need for water
- Unlike air cooling systems, this system operates 24/7 with a 100% duty cycle
- Currently the only option on the market designed to operate from −20 °C to +60 °C (−4 °F to +140 °F)
- Double-circuit heat pump for superior cooling efficiency
- Portable and lightweight
- Welding torch is the lightest available: under 600 g (1.6 lb), 270 × 230 mm (10.6" × 9")
- More energy-efficient than other laser welders

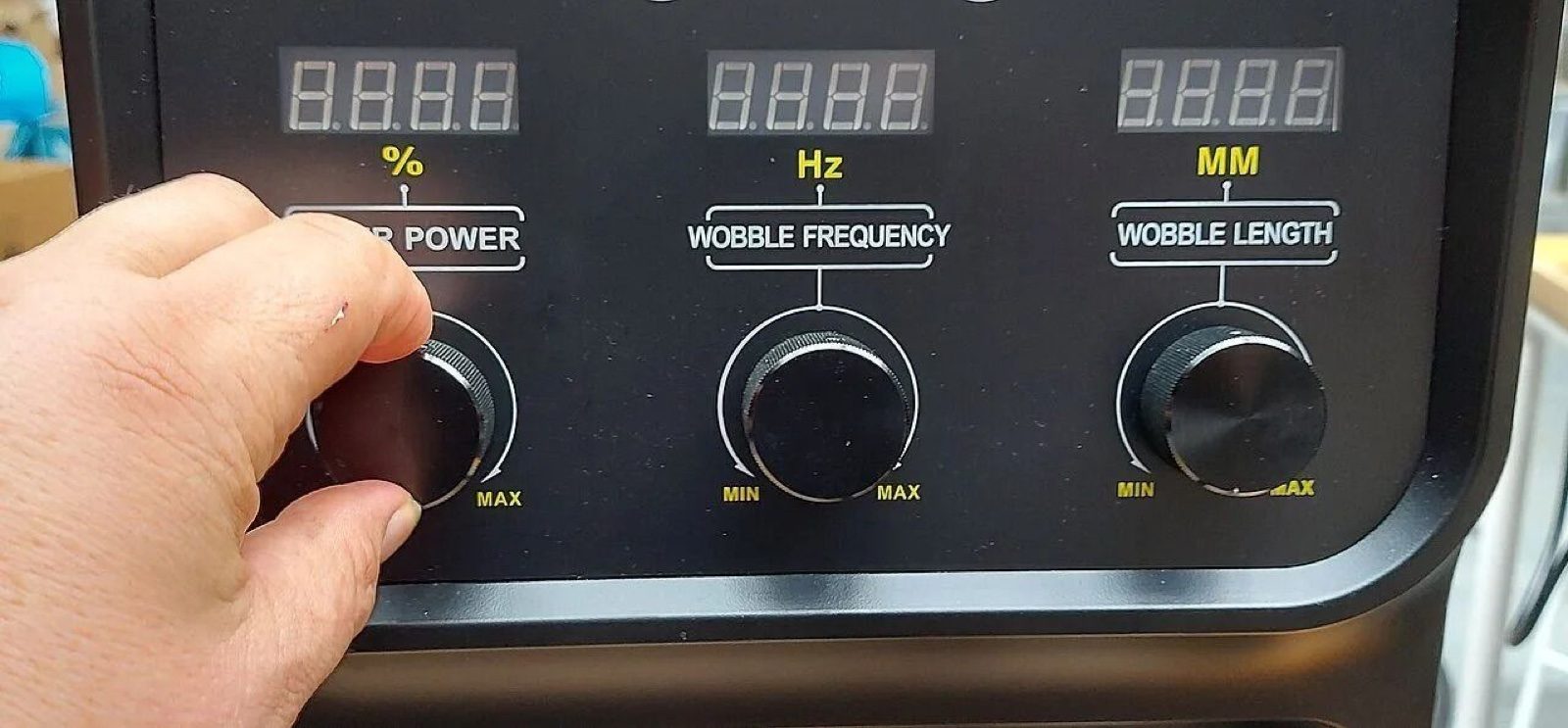

- Simple 3-button control for user-friendly operation
- Innovative control concepts ensure a familiar welding experience
- Super high-speed wobble head: dynamic beam motion with independent oscillation amplitude and frequency control via high-speed servo

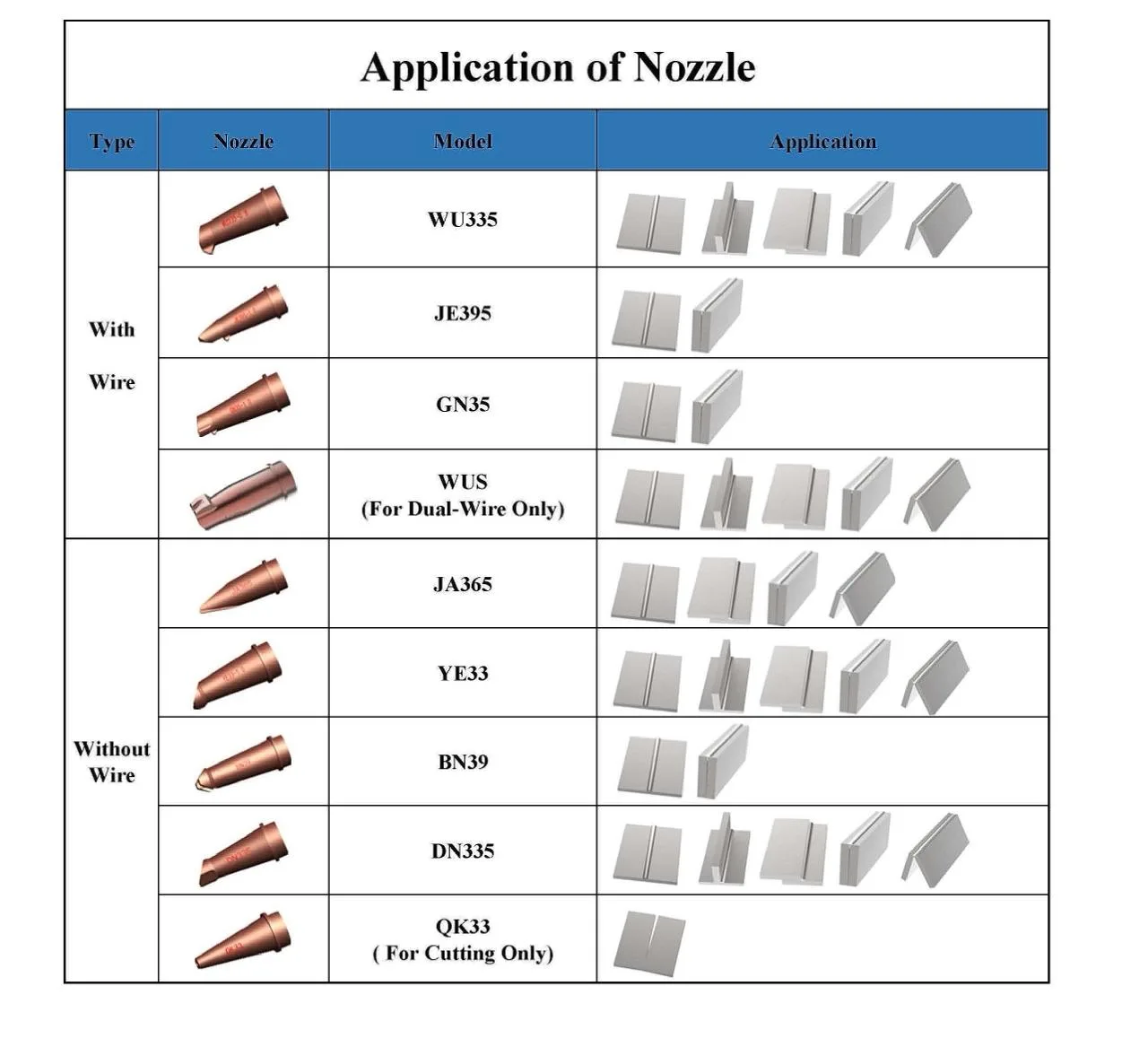

- Various nozzle tips to optimize for different joint types; single-trigger operation; triple-protected 10 m / 15 m (32' / 49') fiber optic cable for large welding projects
- Dual safety light and automatic wire feeding and retracting
- Control app on your cell phone
- Dual wire feeder

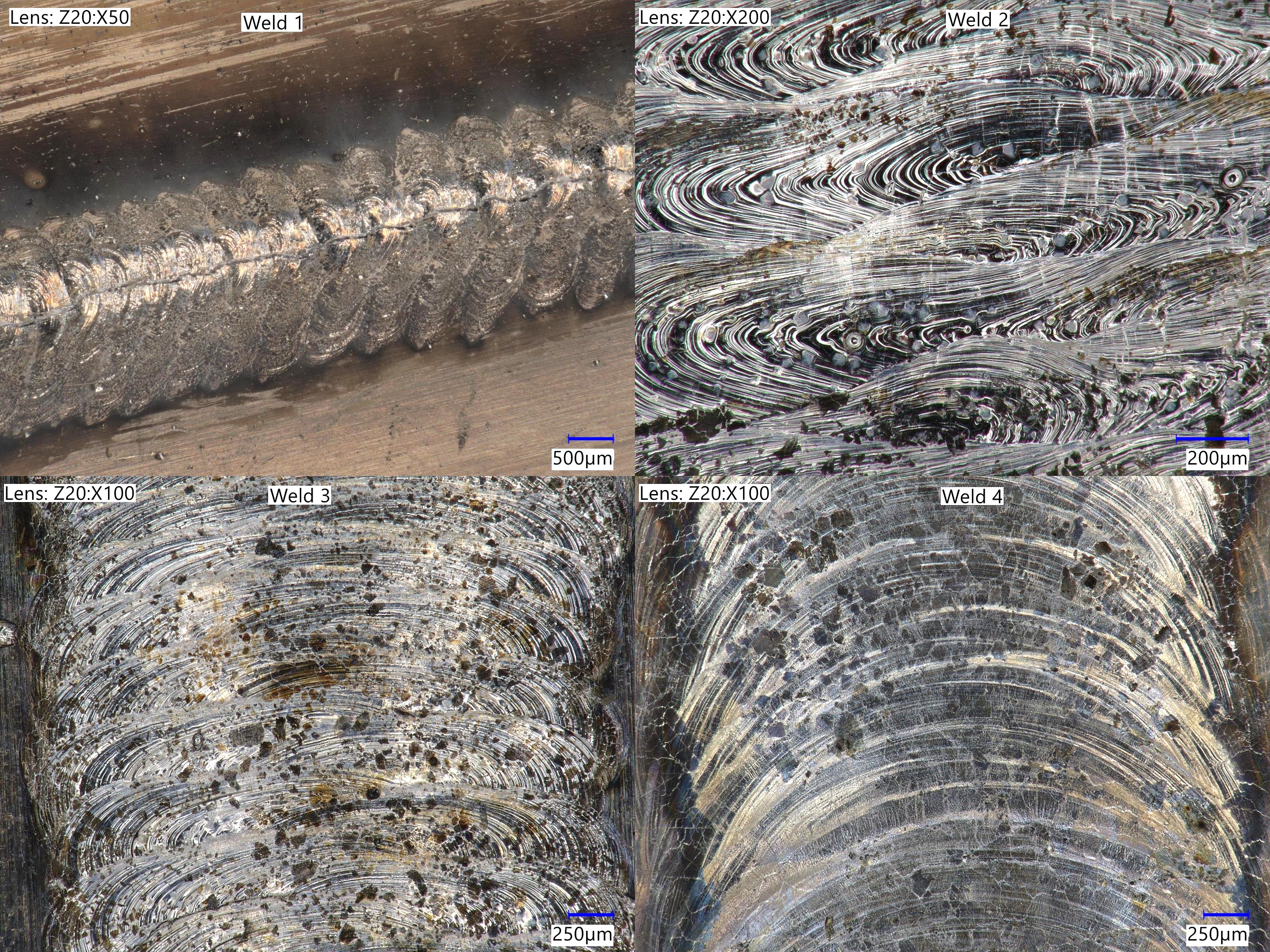

Testing the aluminum welding integrity (Ascent 2000W welder) with an electronic microscope

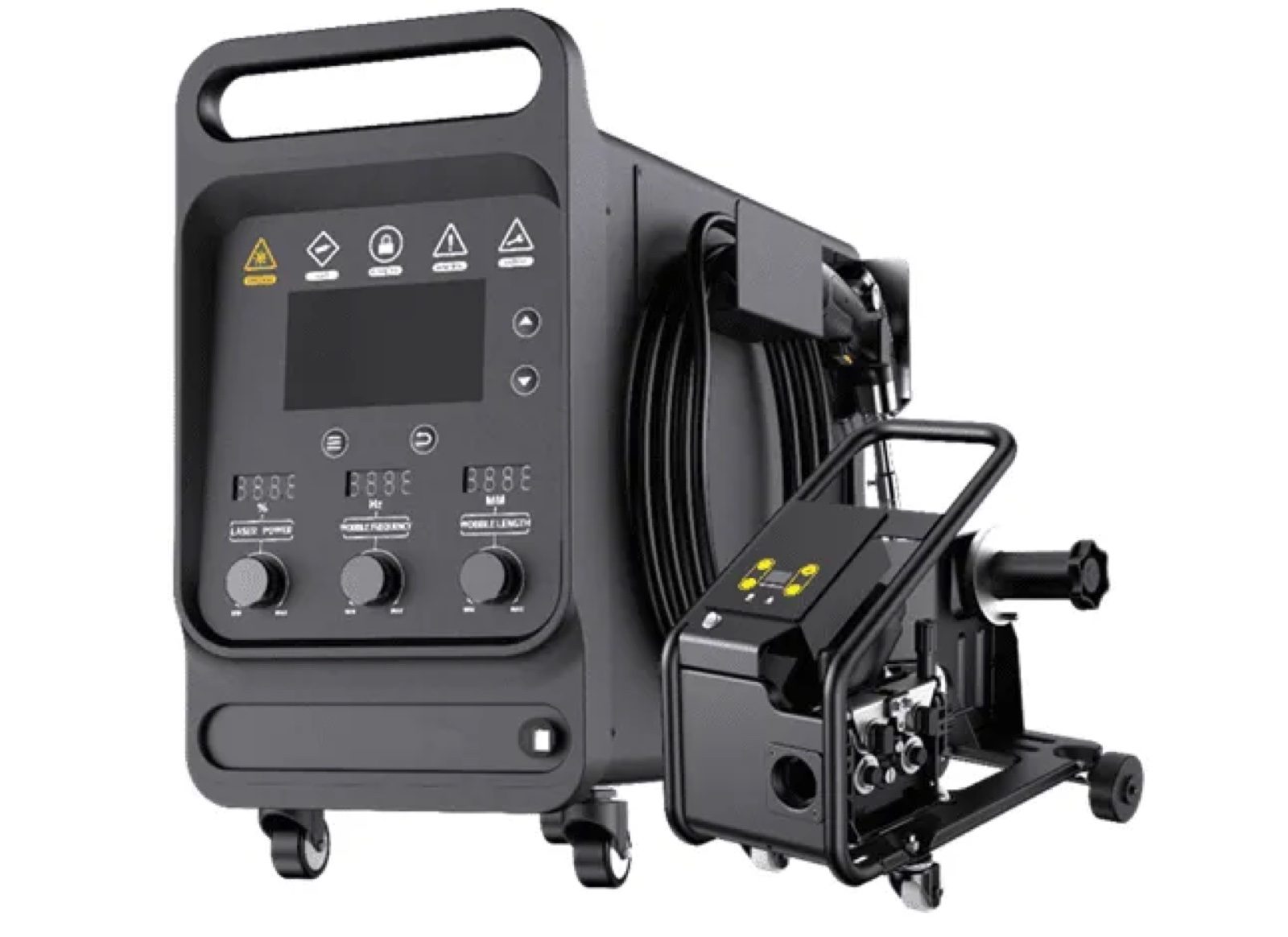

Handheld Fiber Laser Welders (1500W, 2000W and 3000W)
*Active cooling with Inverter driven compressors and servo-driven ventilators
*Maximum Welding Thickness depends on the material quality.
*220V from 190V to 240V
*380V from 360V to 420V
| Ascent A-PRO Serie | A-PRO-HW-550 | A-PRO-HW550P | A-PRO-HW-850 |
|---|---|---|---|
| 1500W | 2000W | 3000W | |
| Maximum Welding Penetration – Single-side Welding*: | Minimum material thickness 0.020" | Minimum material thickness 0.020" | Minimum material thickness 0.040" |
| Stainless Steel | 7,0mm=0.27" | 9,0mm=0.35" | 12,0 mm=0.51" |
| Carbon Steel | 7,0mm=0.27" | 9,0mm=0.35" | 11,0 mm=0.43" |
| Corten steel | 5,0 mm=0.196" | 6,0 mm=0.23" | 8,5 mm=0.33" |
| Galvanized steel | 6,0mm=0.23" | 7,0mm=0.27" | 9,0 mm=0.35" |
| Aluminum 3000/5000 | 6,0mm=0.23" | 7,0mm=0.27" | 9,0 mm=0.35" |
| Aluminum 6000 alloy | 5,0 mm=0.196" | 6,0 mm=0.23" | 7,5 mm=0.295" |
| Brass | 3,5 mm=0.118" | 4,5 mm=0.177" | 6,0 mm=0.23" |
| Copper | 3,0 mm=0.118" | 4,0 mm=0.157" | 5,0 mm=0.196" |
| Titanium | 4,5 mm=0.177" | 5,0 mm=0.196" | 6,0 mm=0.23" |
| Zink >98% | 3,5 mm=0.137" | 4,0 mm=0.157" | 5,0 mm=0.196" |
| Fiber cable length | 5/10/15m=16/32/49' | 5/10/15m=16/32/49' | 5/10/15m=16/32/49' |
| Power supply cable | 10m=32' | 10m=32' | 10m=32' |
| Weight | 46kg=101Lb | 48kg=105Lb | 84 kg=185Lb |
| Dimensions (L-H-W) | 673-505-310mm | 673-505-310mm | |
| Operating temperature | -20 to +60°C=-4°F to 140°F | -20 to +60°C | -20 to +60°C |
| Noise level | < 58 dB | < 50 dB | < 58 dB |
| Power connection | 220V – 1 Phase – 20A | 220V – 1Phase – 31A | 380V – 3 phase-17Amps |
| Applicable wire diameter | 0,8/1,0/1,2/1,6 mm | 0,8/1,0/1,2/1,6 mm | 0,8/1,0/1,2/1,6/2,0 mm |
| Predefined Welding Parameters | 40 | 40 | 40 |
| Free programmable welding Parameters | 20 | 20 | 20 |
Android cell phone app for easy control and setup
- Adjust and create your welding parameters with ease
- Easily select welding settings
- Use the remote controller to choose the optimal process conditions
- Set welding conditions using our application
- This application allows you to select, adjust, and save welding conditions and monitor interlocks, warnings, and alarms
- The application is included with the machines or can be downloaded from the App Store

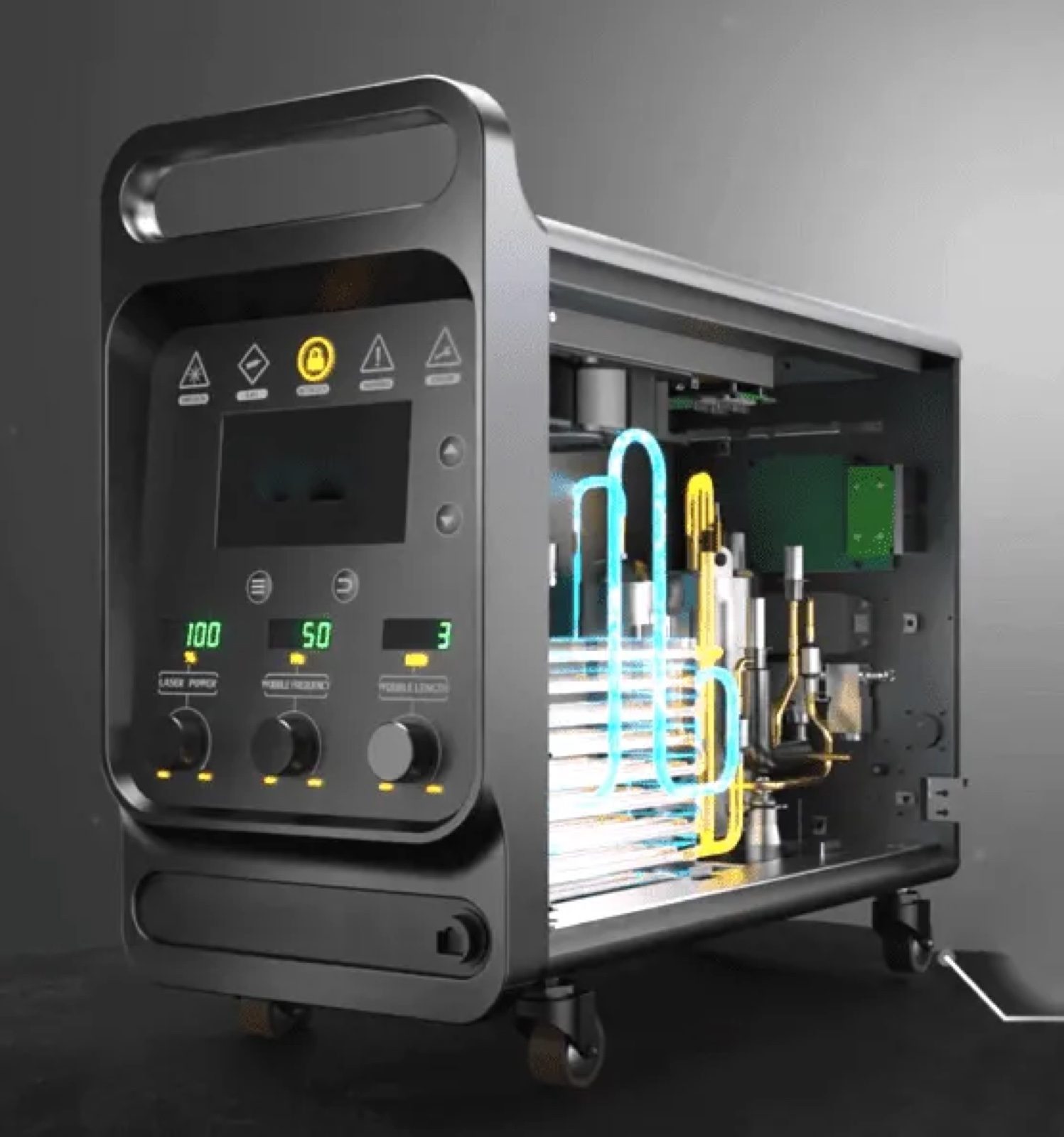

Controls and cooling
Super economical and efficient — Compressor cooled Heat pump inside, 60% less energy consumption than other cooling systems + 100% uptime at maximum power.

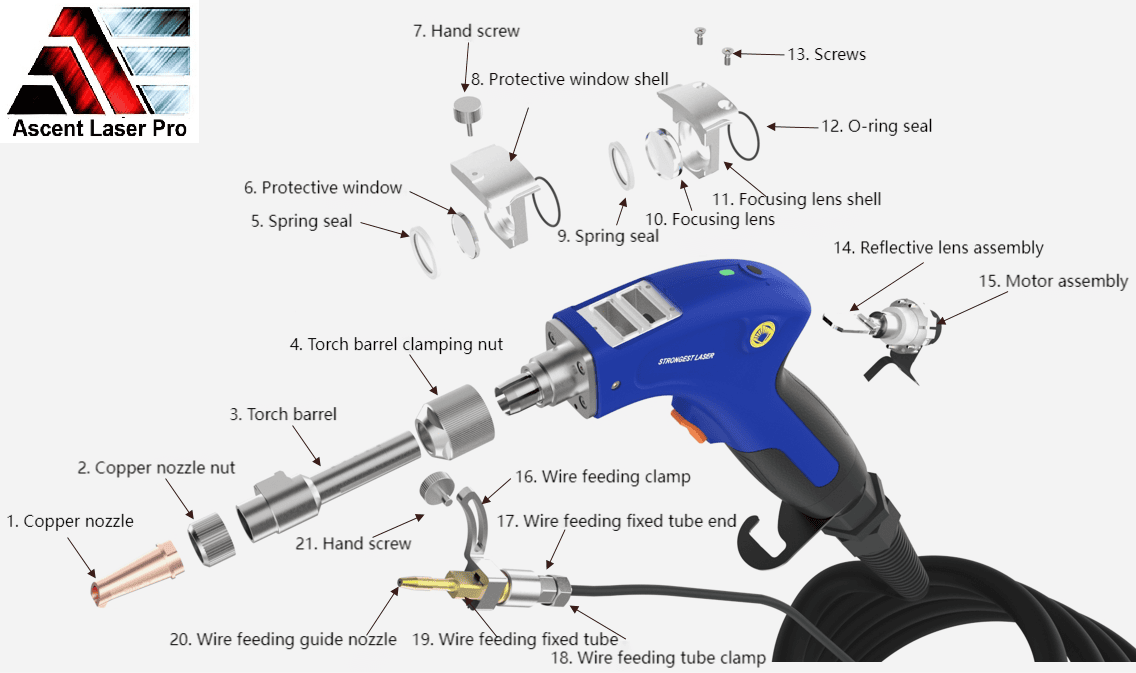

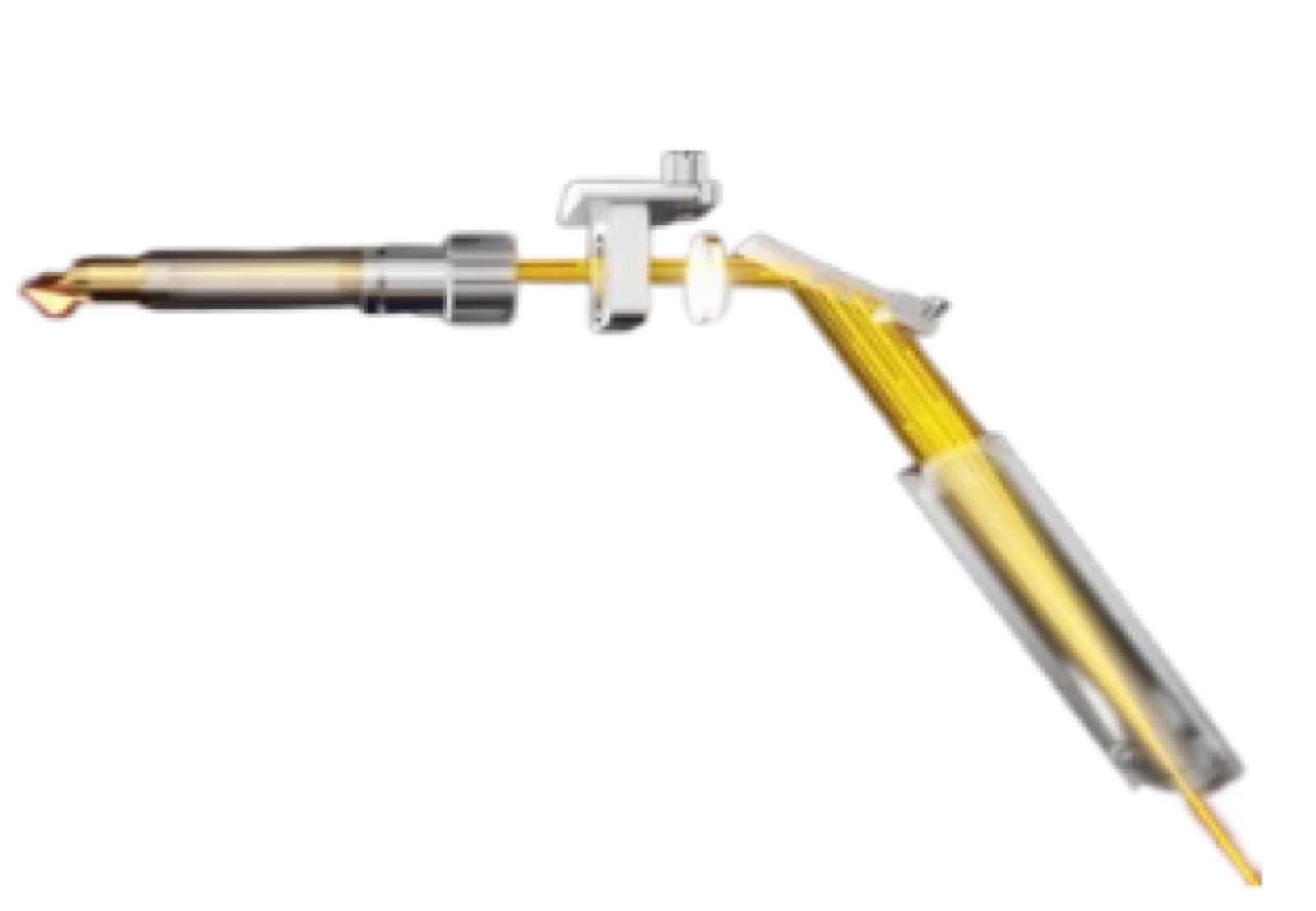

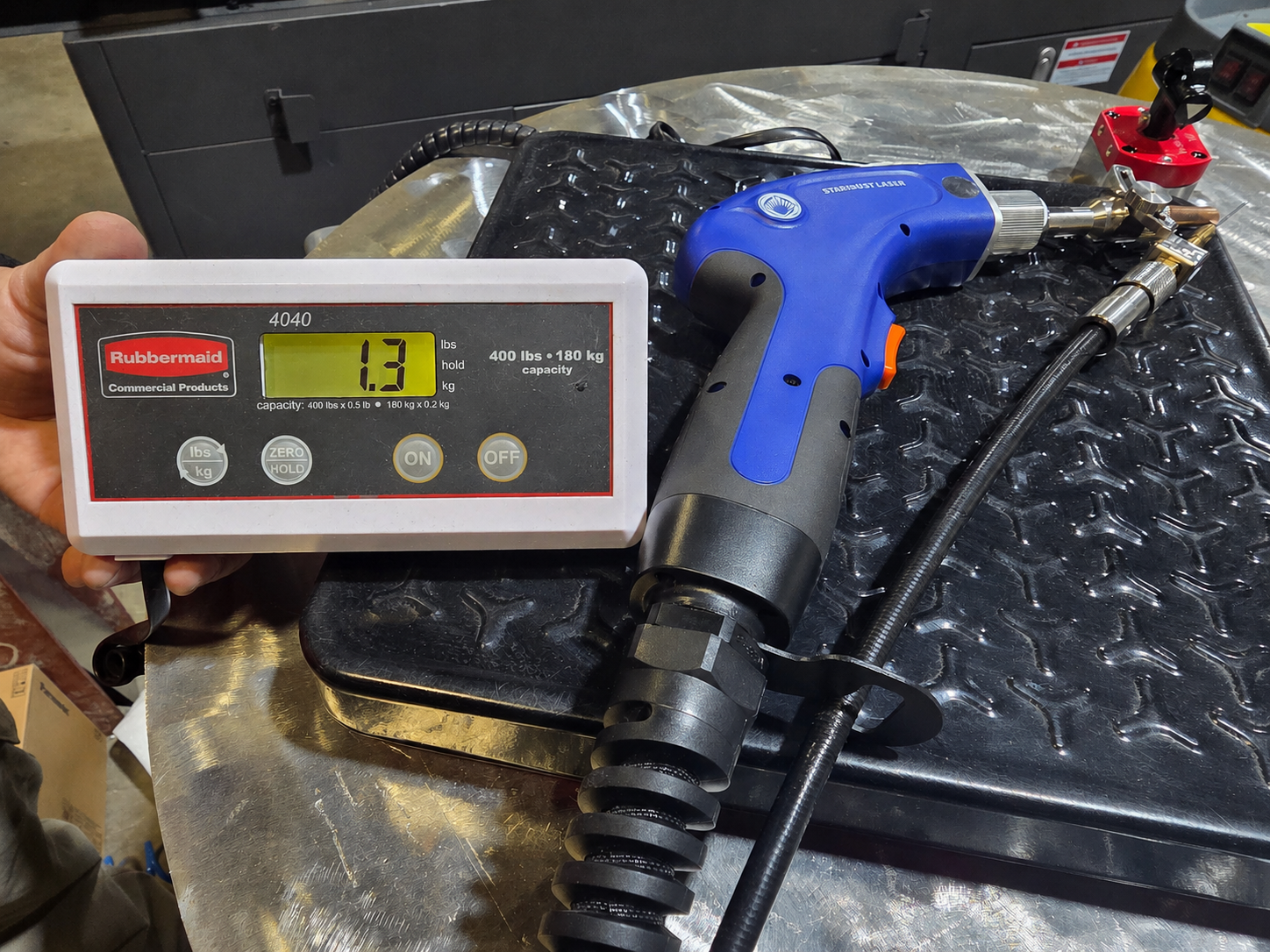

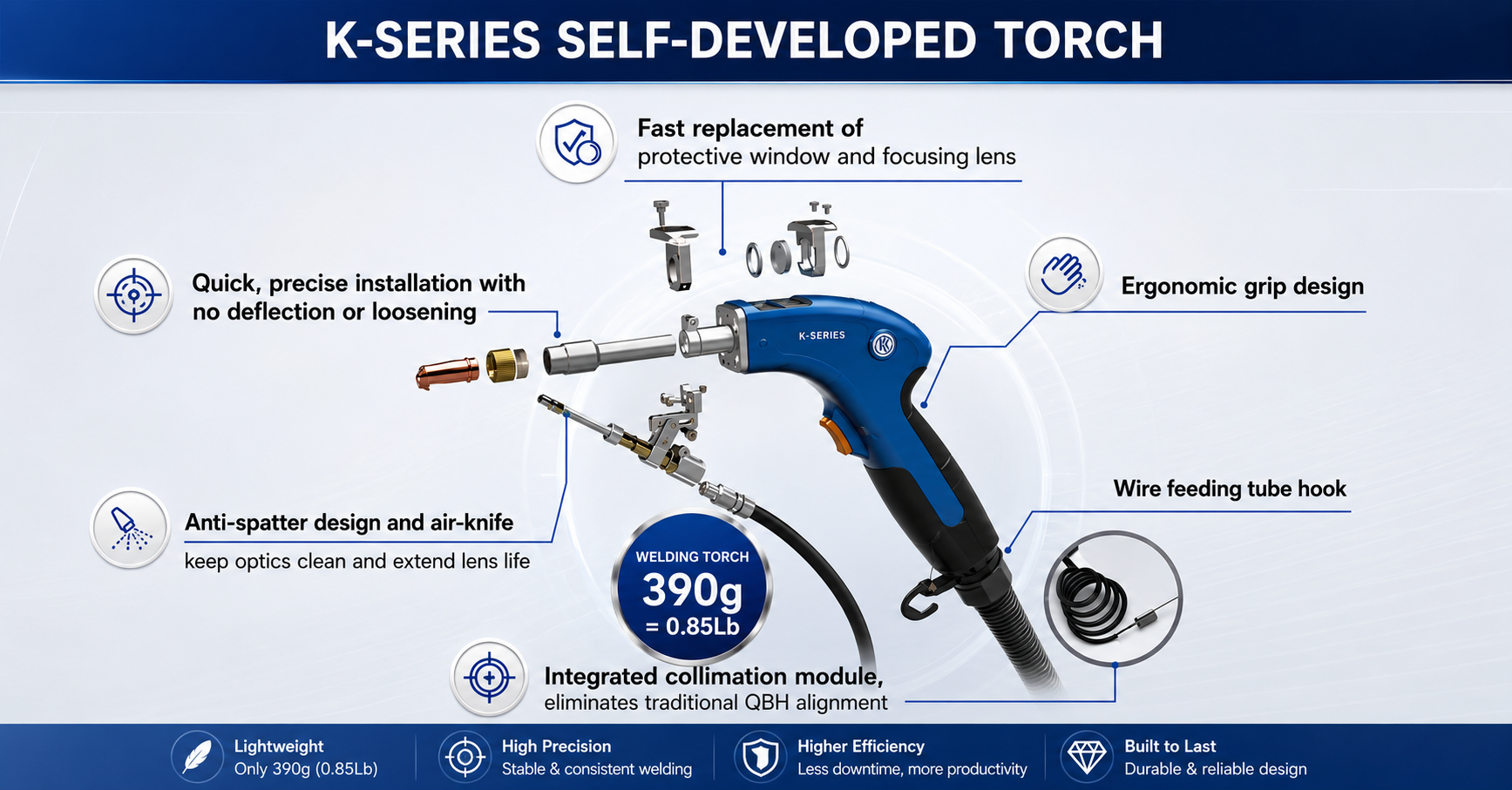

The lightest torch in the industry
The laser welding torch is the lightest available in the industry — preventing operator fatigue at less than 600 g (1.6 lb) with dimensions of 270 mm x 230 mm (10.6" x 9").

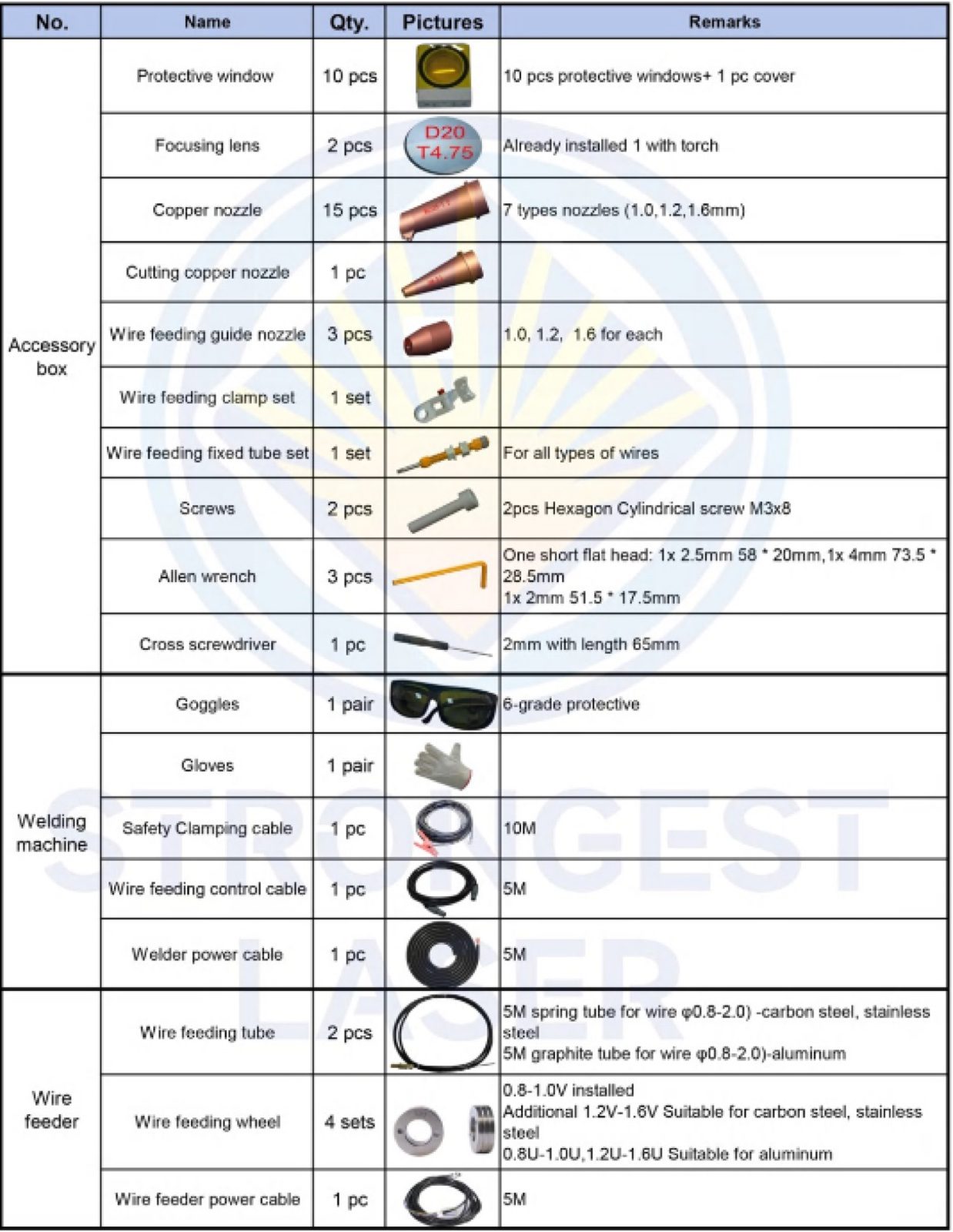

Complete package delivered with the machine
Wire Feeder, Accessories, Trolley, Safety Glass and Laser Helmet

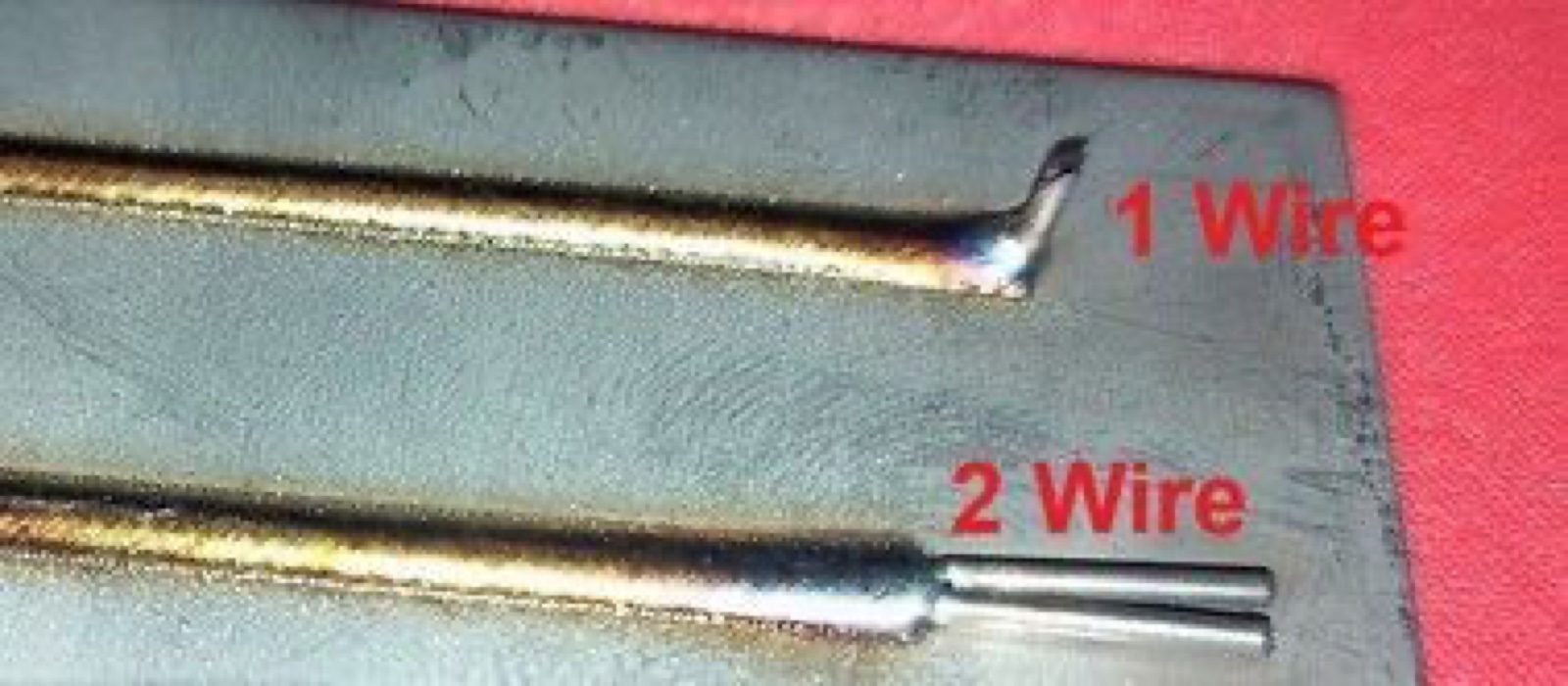

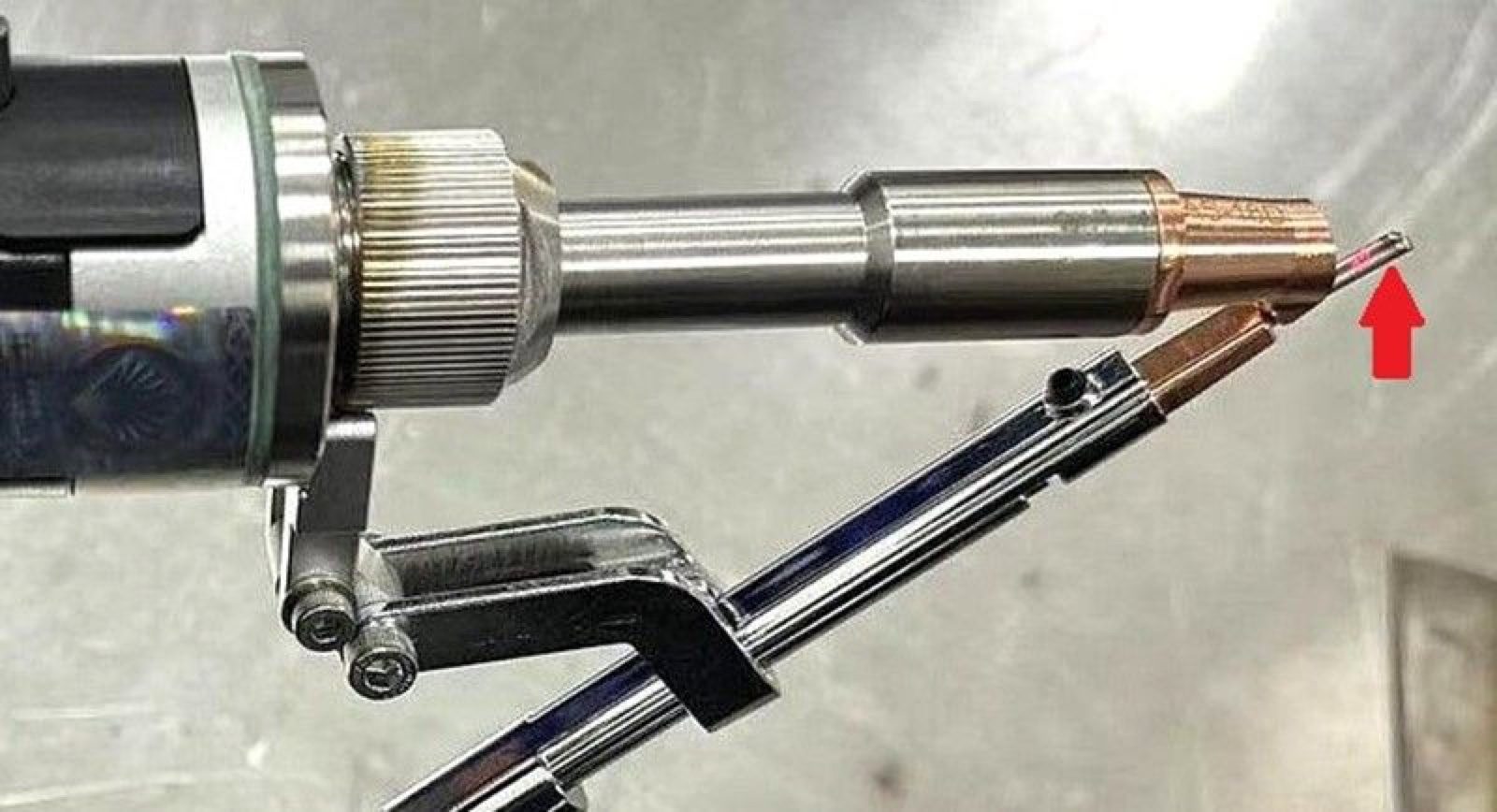

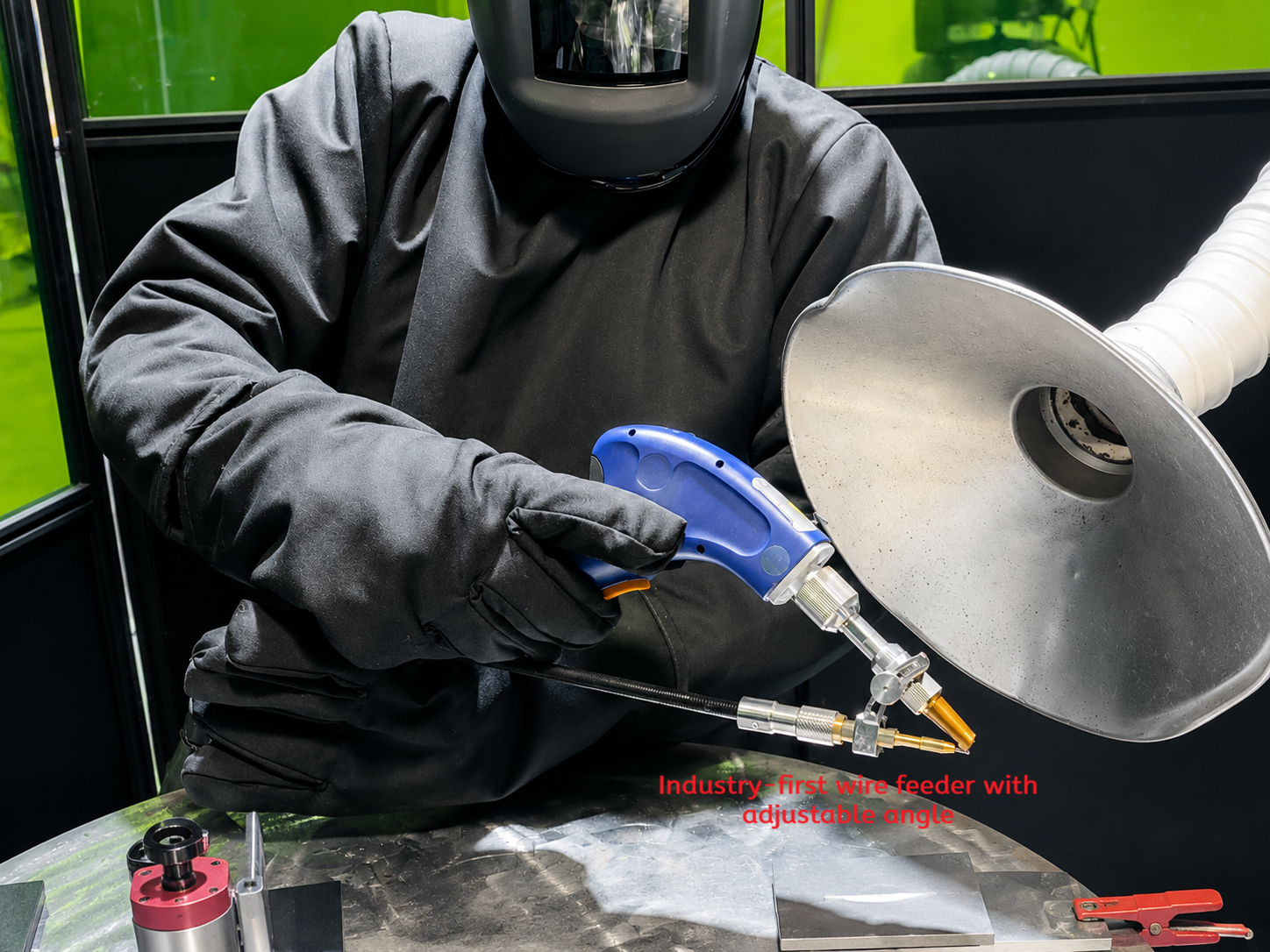

The advantages of dual wire feeder
- Significant gap-closing capacity
- Capability for multi-layer welding
- Wide gap-filling capacity (2 x 1.6 mm wire = 2.5–3.0 mm gap-filling capacity)
- Extremely high welding speeds
- High deposition rate
- Usable for both thin and thick materials
- Easy to operate
- Two separate wire feeders, with each wire controlled independently. When not in dual welding mode, both wire feeders can be prepared for different materials (e.g., stainless steel on one and aluminum on the other), allowing for a very short changeover time between materials.

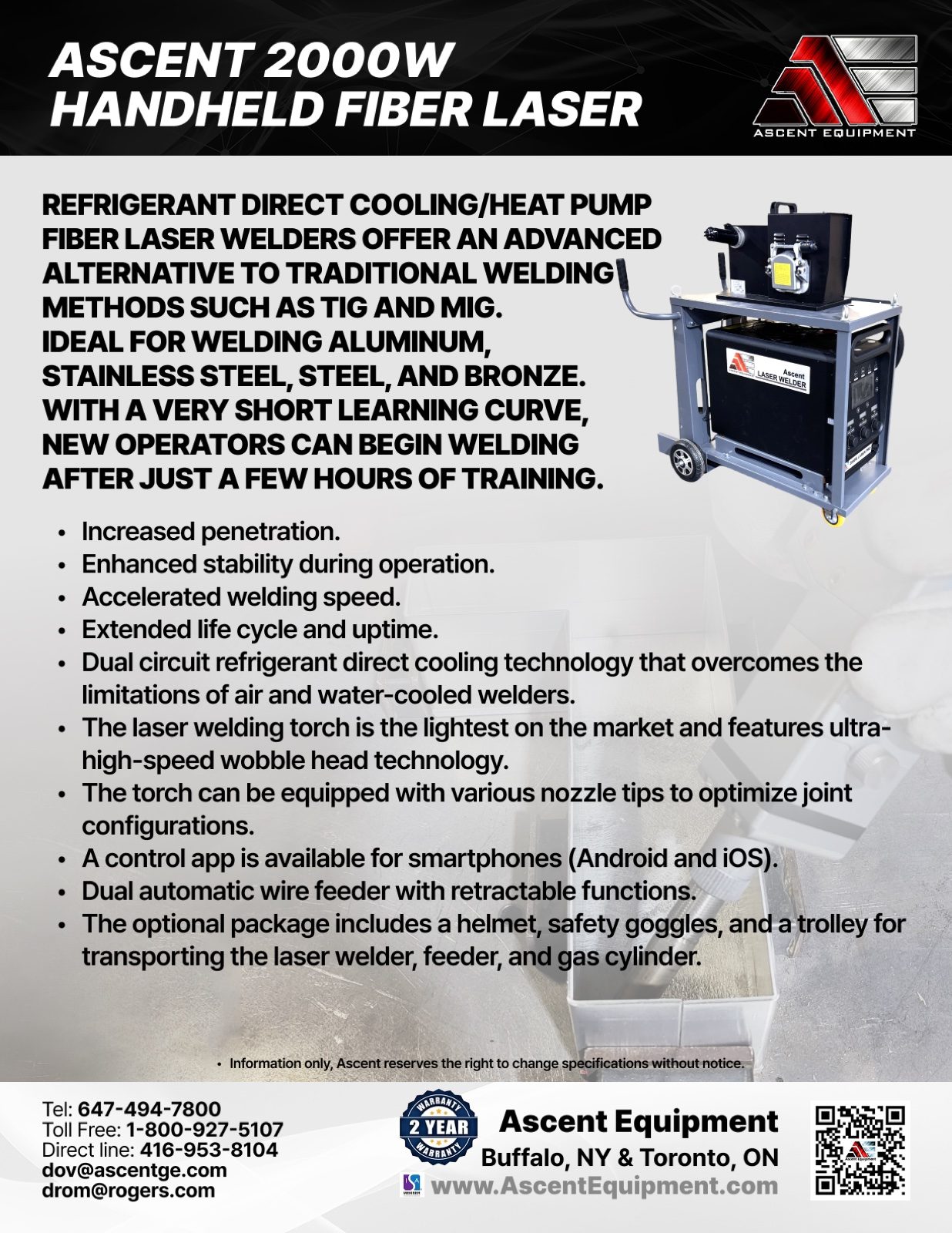

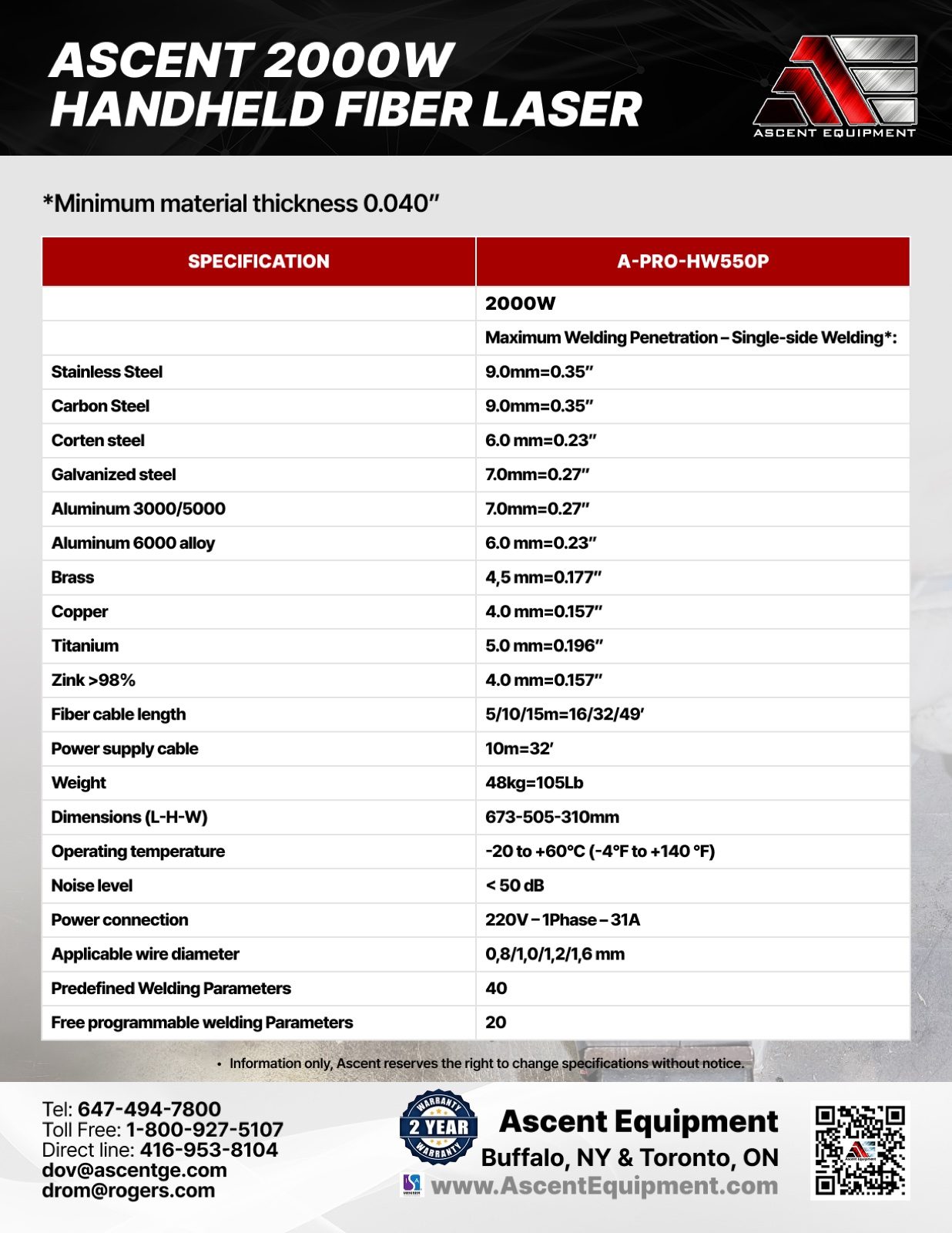

Spec sheet
Frequently asked
Common questions about this equipment
What does the price include? Are there hidden fees?
At Ascent Equipment, our pricing is completely transparent. The quoted price includes everything needed for operation — no add-ons, hidden fees, or extra charges. The only additional cost is freight. Included: on-site setup with professional installation and comprehensive team training; full two-year parts-and-labor warranty; ongoing software updates at no additional cost; lifetime remote diagnostics and assistance; AnyDesk Remote Desktop Software pre-installed for rapid-response remote assistance and retraining. With technicians strategically located in Buffalo, Toronto, and Kentucky, help is always nearby.
What is unique about the Ascent handheld fiber laser welder compared to others in the industry?
The Ascent laser welder is the only one in the industry that uses a refrigeration heat pump, enabling continuous operation without downtime. The laser torch is the smallest, allowing it to work in a space with a 1.5" stroke. It is the lightest in the industry, reducing operator fatigue. It is the only welder that can handle aluminum thicknesses from 0.040" to 0.27". It features a dual wire feeder for larger gaps. The machine comes as a complete set with a trolley, safety glasses, and a laser helmet.
How about laser safety?
For laser welders, we recommend using special safety glasses or a laser helmet, which we supply with the machines. Use welding gloves, or you can purchase special gloves and an apron that withstand temperatures over 5000 °F. For laser welders, use laser partitions that can be purchased from us or make your own. For the laser cutter, ensure it is purchased with a cover, or use laser partitions available from us, or make your own. For the laser cutter, ventilate fumes to the outside or purchase a special filter.
